aPower S
Current model: aPower S · APRS-10K15V1-US
FranklinWH's newest all-in-one battery with direct solar connection and an integrated hybrid inverter.
FranklinWH's newest all-in-one battery with direct solar connection and an integrated hybrid inverter.

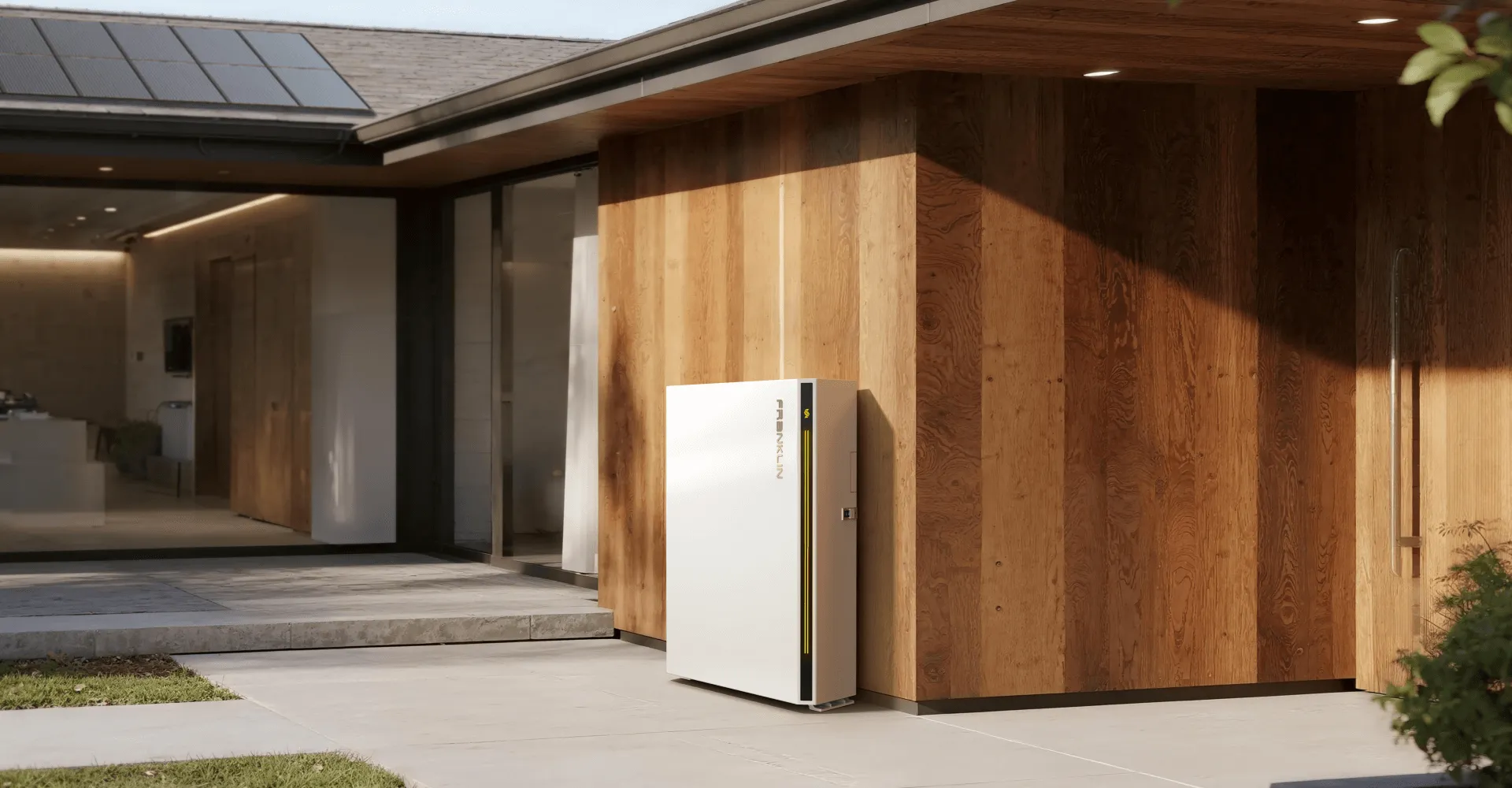

The FranklinWH aPower S integrates a 15 kWh LFP battery, hybrid inverter, and four solar MPPT channels in one enclosure. It is designed for new solar-plus-storage projects that benefit from direct solar input, high output, fast charging, and scalable whole-home backup.
Final model, configuration, availability, and warranty terms are confirmed in the written proposal.
aPower S at a glance.
Your proposal confirms the final configuration, compatibility, and warranty.
| Specification | Published value |
|---|---|
| Model | APRS-10K15V1-US |
| Usable energy | 15 kWh |
| Continuous output | 11.5 kW |
| Peak output | 15 kW for 10 seconds |
| Solar input / architecture | Integrated hybrid inverter · 4 MPPTs · up to 20 kW DC input |
| Battery chemistry | Lithium iron phosphate (LFP) |
| Manufacturer warranty | 15 years / 60 MWh throughput |
Key strengths
- Integrated hybrid inverter and four MPPT solar inputs
- Supports up to 20 kW of direct solar input per battery
- Up to 8 kW battery charging and automatic solar black start
- Can share an aGate with compatible aPower 2 units
Best suited for
- New solar-plus-storage installations
- Roofs with multiple solar orientations
- Homes that need high output and future storage expansion
Questions this product must answer
- Is the project new solar, a retrofit, or both?
- How many roof planes need independent solar tracking?
- Which loads must start and run during an outage?
- Would aPower S, aPower 2, or a mixed FranklinWH design be the better fit?
The complete system still matters
Capacity, output, efficiency, and warranty narrow the field. The final choice must also fit the roof, electrical design, permits, utility, and service plan.
Any proposed equipment substitution should be documented and reviewed before installation.
